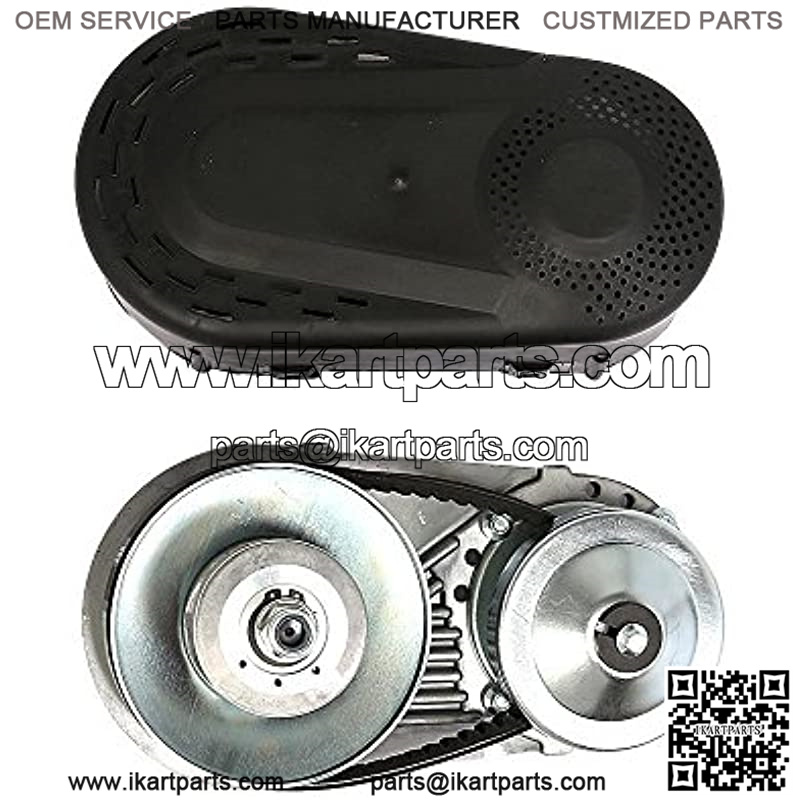

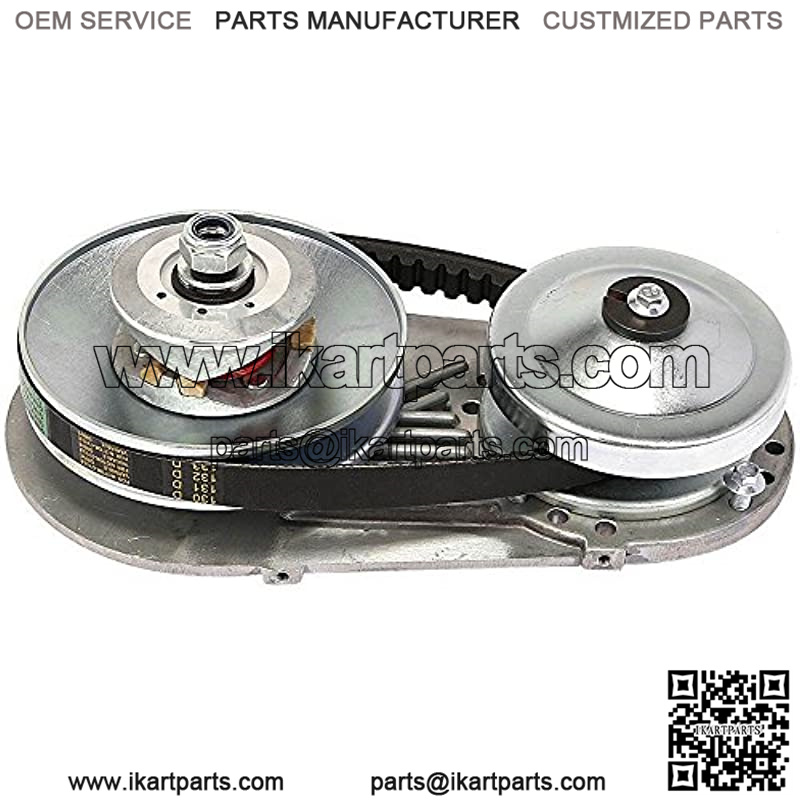

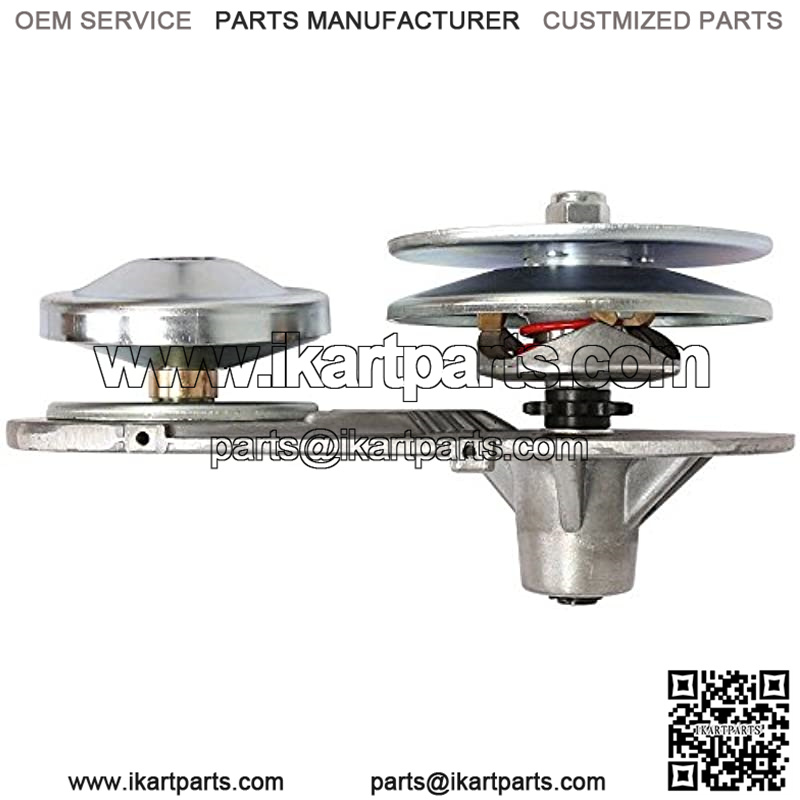

Torque Converter Go Kart Clutch Replaces Comet TAV2 1 inch 30-100 Manco 10t & 12t #35,40 or 41 Chain Small Engine Belt Drive (1" 10T 40/41)

SKU TAV.00216 BSL-55 Category Tag

SPREAD THE LOVE

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on reddit
Share on odnoklassniki

Description

Specifications:

Driven unit: Dia. 157mm

Drive clutch bore: 1″

Belt: Asymmetrical type

Top width: 19mm(3/4″)

Sprocket teeth: Choice of 10 teeth or 12 teeth

Engagement range: 2350 200 RPM

Recommended engine: 8HP – 13HP engine, 1″shaft with flat key

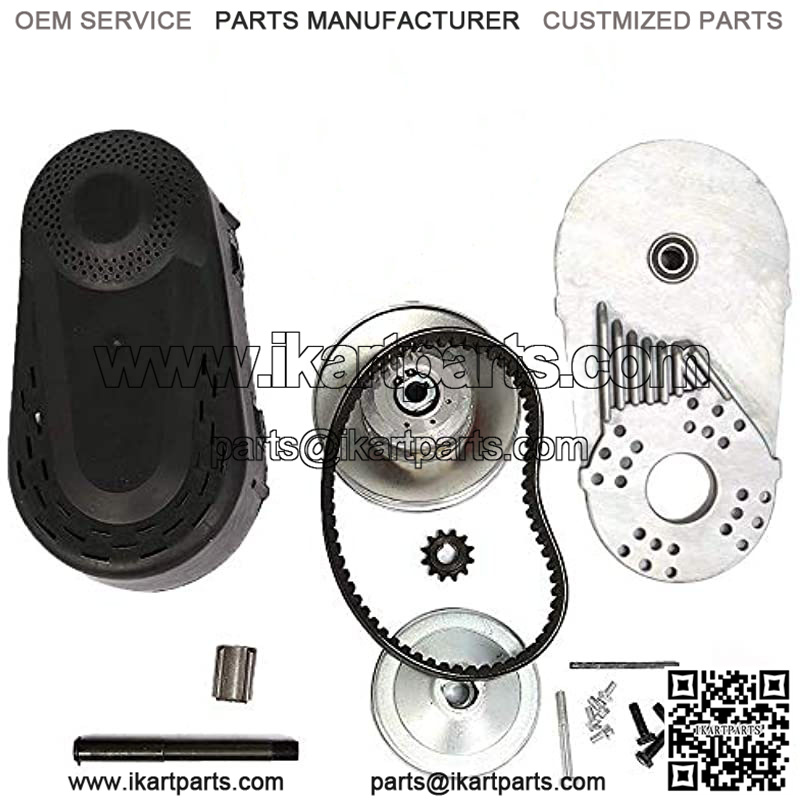

The Torque Converter assembly includes:

Driver Unit:1setDriven Unit:1set

V-Belt:1pc

Driven Shaft & Gear:1set

Side Retainer Plate:1pc

Torque Converter Cover:1pc

InstructionsAll respective trademarks and registered trademarks appearing on this website belong to their respective ownersProduct does not need bronze idler bushing.
