Suspension Shock 12mm Spring 305mm Shock Absorbers for NXR125 Gokart/ATV/Motorcycles and Quad. for Bike car

The fully loaded complete device is safe and easy to install. Ensure fit and function.

The coil spring is heat-treated and powder-coated to ensure service life and anti-corrosion.

The spring seat is insulated from the spring to ensure a quiet and comfortable ride quality.

Designed straightforward and complete strut assembly with strut coil spring and mounting seat-ready for installation. No special tools are needed! Remove the entire pillar assembly and replace it with one piece

It is durable and precision designed to improve vehicle control, proper damping and consistent balance. And it has been thoroughly tested to ensure proper fit and performance as well as safe and easy installation

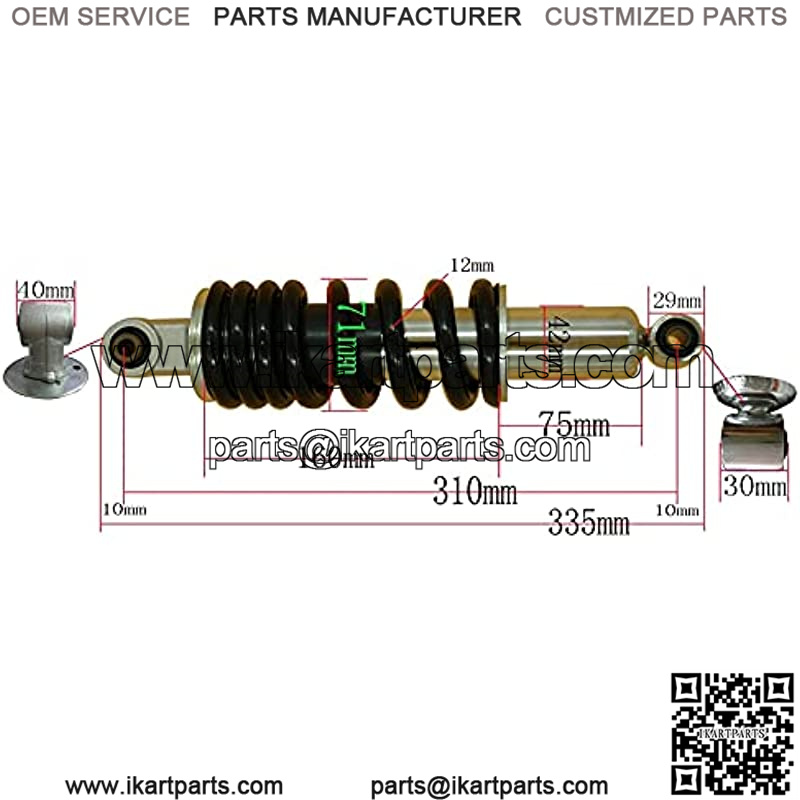

Total length: 335mm / 13″
Eye to eye: 305mm / 12″
Spring thickness: 12mm
top eye thickness:40mm
bottom eye thickness:30mm
Hole Internal Diameter : 10mm (Only)
spring Width: 69mm / 2.7″
Spring Length: 205mm / 8″
max load:450kgs
Package included:
1 Piece x Shock Absorber
