Small Vehicle Chain,Small Vehicle Chain C Strength & Dimensions

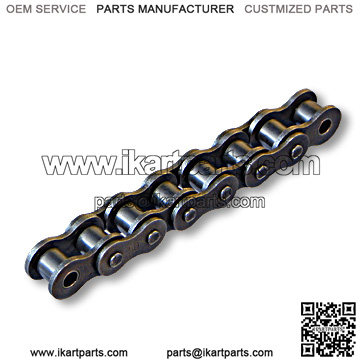

Small Vehicle Chain
All Lengths Include a Connecting Link
Also available in 10′ Boxes & Bulk Reels
CUT-TO-LENGTH SMALL VEHICLE CHAIN
Description/
Chain Size
3′
40″
4′
5′
#25H
4803

8mm

4312

#219H
4397

#35
4316

4318
4313
Click here for 10 Boxes and Bulk Reels
CUT-TO-LENGTH SMALL VEHICLE CHAIN
Description/
Chain Size
3′
40″
4′
5′
#35 Space
4390
4392
4391

#41
4501

4289
4503
#420
4363

4485
4370
#40
4359

4390

Small Vehicle Chain C Strength & Dimensions
CHAIN SIZE
PITCH
ROLLER
DIAMETER
BETWEEN
INNER
PLATES
PIN
DIAMETER
AVERAGE
TENSILE
LBS.
PER
FOOT*
#25
1/4
.130
1/8
.091
875
.08
#25H
1/4
.130
1/8
.091
1146
.10
8mm
8mm
5mm
3mm
2.31mm
4,600
.18
#219H
.306
.200
.183
.118
2,100
.22
#35
3/8
.200
3/16
.141
2,100
.22
#35 Space
3/8
.200
3/16
.141
2,100
.24
#41
1/2
.306
1/4
.141
2,000
.27
#420
1/2
.306
1/4
.156
3,700
.38
#40 (#425)
1/2
.312
5/16
.156
3,700
.41
*nominal
