Double Strand Roller Chain,Double Strand Roller Chain C Strength & Dimensions

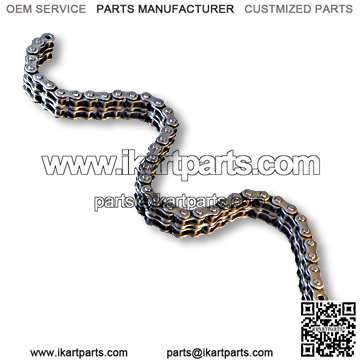

Double Strand Roller Chain
DESCRIPTION/
CHAIN SIZE
10′ BOX
BULK REELS
(PER FOOT)
CONNECTOR
LINKS
OFFSET
LINKS
#35-2
4011-10

4012
4013
#40-2
4017-10

4018
4019
#50-2
4059-10

4060
4061
#60-2
4065-10
4065
4066
4067
#80-2
4129-10
4129
4130
4131
#80-2 Cottered
4747-10

4130
4131
#100-2 Cottered
4138-10

4139
4140
#140-2 Cottered
4738-10

4739

Double Strand Roller Chain C Strength & Dimensions
CHAIN NUMBER
PITCH
ROLLER
DIAMETER
BETWEEN INNER
PLATES
PIN
DIAMETER
AVERAGE
TENSILE
LBS. PER FOOT*
#35-2
3/8
.200
3/16
.141
4,200
.43
#40-2
1/2
.312
5/16
.156
7,400
.80
#50-2
5/8
.306
3/8
.200
12,200
1.30
#60-2
3/4
.400
1/2
.234
17,000
2.02
#80-2
1
.625
5/8
.312
29,000
3.40
#80-2 Cottered
1
.625
5/8
.312
29,000
3.50
#100-2 Cottered
1-1/2
.469
3/4
.375
48,000
5.26
#140-2 Cottered
1-1/2
.875
1
.500
92,000
9.87
