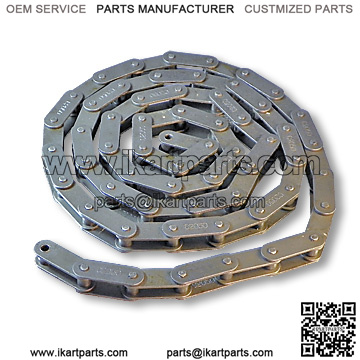

DOUBLE PITCH CONVEYOR CHAIN
DESCRIPTION
10′ BOX
BULK REELS
(PER FOOT)
CONNECTOR
LINKS
OFFSET
LINKS
Side Plates “A”
#A2040
4101-10
4101
4102
4103
#A2050
4107-10
4107
4108
4109
#A2060
4113-10
4113
4114
4115
Straight Side Plates “C”
#C2040
4104-10
4104
4105
4106
#C2050
4110-10
4110
4111
4112
#C2060 H
4116-10
4116
4117
4118
#C2080 H
4741-10
4741
4742
4743
Straight Side Plates with Oversize Rollers Above the Plates
#C2062 H
4120-10
4120
4117
4119
#C2082 H
4744-10
4744
4742
4743
Conveyor Chain C Strength & Dimensions
DOUBLE PITCH CONVEYOR CHAIN
CHAIN NUMBER
PITCH
ROLLER
DIAMETER
BETWEEN INNER
PLATES
PIN
DIAMETER
AVERAGE
TENSILE
LBS. PER FOOT*
Side Plates “A”
#A2040
1
.312
5/16
.156
3,700
.30
#A2050
1-1/4
.400
3/8
.200
6,100
.42
#A2060
1-1/2
.468
1/2
.234
8,500
.78
Straight Side Plates “C”
#C2040
1
.312
5/16
.156
3,700
.34
#C2050
1-1/4
.400
3/8
.200
6,100
.52
#C2060 H
1-1/2
.468
1/2
.234
8,500
1.05
#C2080 H
2
.625
5/8
.32
15,250
1.90
Straight Side Plates with Oversize Rollers Above the Plates
#C2062 H
1-1/2
.875
1/2
.234
8,500
1.50
#C2082 H
2
1.125
5/8
.312
15,250
2.63
*nominal
