Comet TAV 30-75 Torq-A-Verter, 12t spkt for #35 chain

SPREAD THE LOVE

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on reddit
Share on odnoklassniki

Description

Product Description

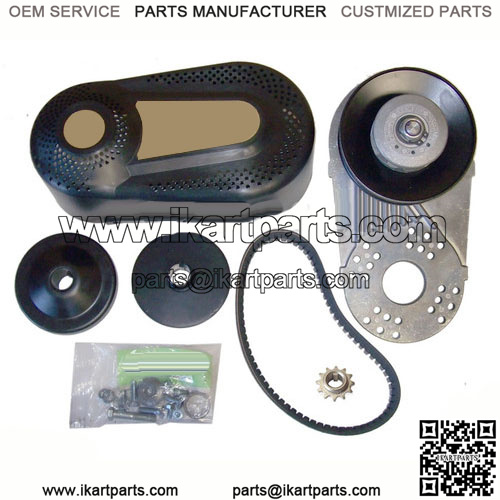

This is the original made in the USA Comet TAV2 Torque converter kit. Designed to be used on go-karts and mini-bikes with engine sizes 3hp to 7hp. This is a must on live axle go-karts especially those with rear tires larger than 16″ tall. A centrifugal clutch will not pull or hold up to these demands.
Features
Driver pulley 3/4″ bore
Driven pulley 5/8″ bore
Drive belt asymmetrical
12T sprocket #35 chain
Backplate and cover
All necessary hardware to install kit
This is an asymmetrical type torque converter system which means the sheave faces are non-symmetrical. They have different angles. In this case, the movable sheave face is 18?? while the stationary sheave face is 21/2?? for a collective angle of 20 1/2??. Here are some reasons for selecting the asymmetrical concept: The Asymmetric concept operates on an in-line principal with the torque sensing cam in an outboard attitude. Only this system is designed to operate this way, thus providing the proper alignment for the final drive chain to be on the same side of the vehicle as the P.T.O. This offers some very significant advantages to mounting requirements in many cases. The asymmetric concept, having the 18?? angle on one side requires less sheave face travel to lift the belt to larger, comparable pitch diameters of the symmetrical system. This makes it possible to force the belt to a diameter within the drive clutch (at high RPM) that exceeds the usual 1:1 ratio of standard systems. The TAV can actually attain an .90:1 or 10% overdrive.

Typical applications: Go karts, Mini Bikes, Wake Wrenchs, Industrial Equipment, Junior Dragsters, Material Handling Equipment.

Additional Information:
We recommend you use an impact when installing these parts. Failure to do so may result in the torque converter coming apart and possible injury.
Download Spec Sheet
Technical Specs:
Two Mounting Bolt Circles (3-5/8″ & 5″) with multiple positions to fit virtually any application
Universal Cover – custom cut chain opening for your application
Strong Cast Mounting Plate -provides rigid system mount with no belt adjustment necessary
Drive Sprocket
Dual Ball Bearing Support – for long durable life even under demanding conditions
90 Day Manuafacturer Warranty
