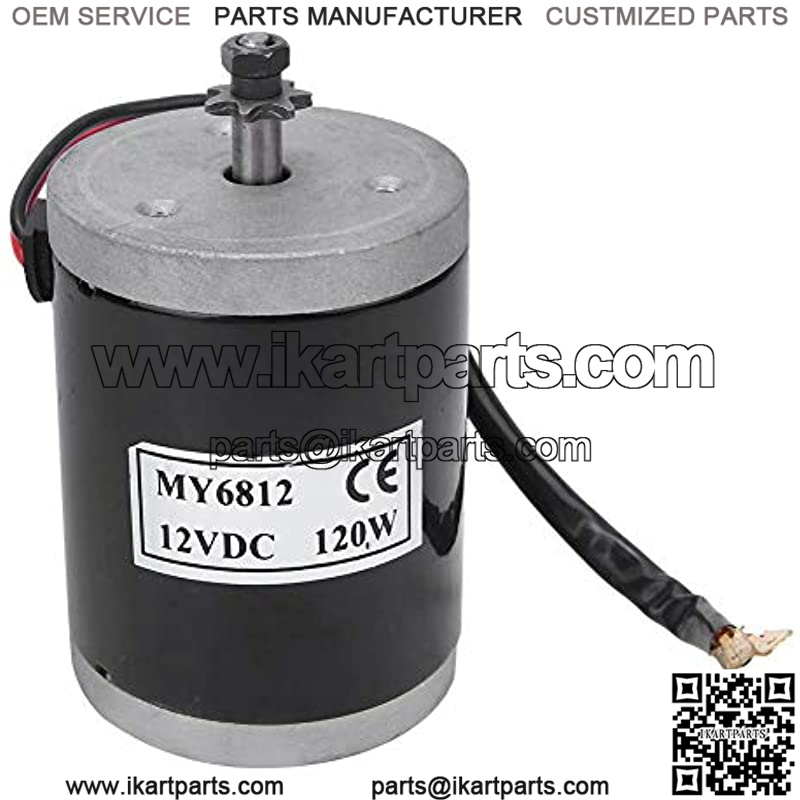

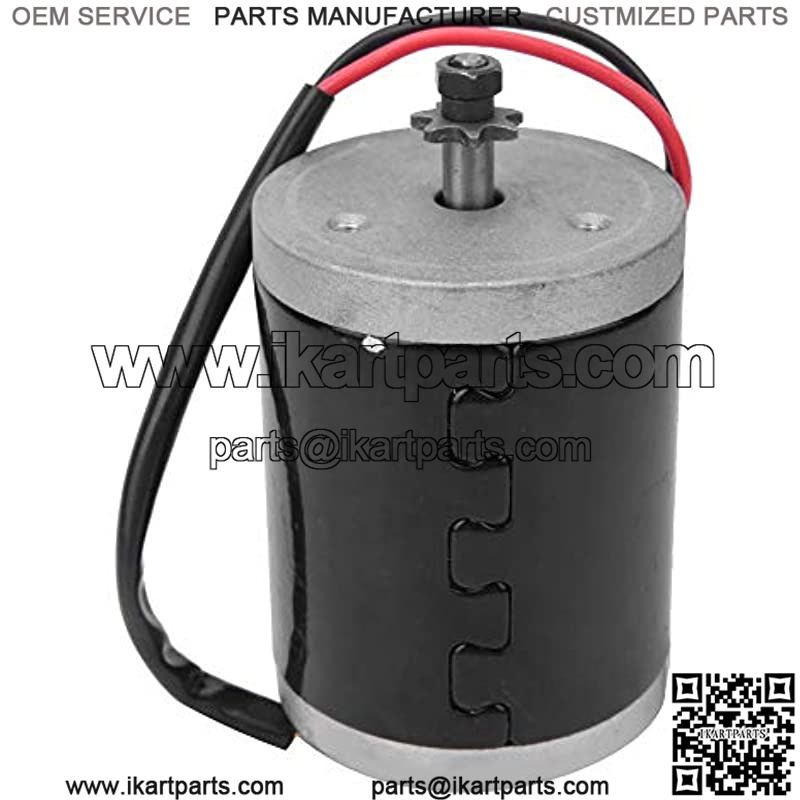

Brushed Motor 12V 120W High Speed Brush Motor Mini DC Motor Electric Motor for Electric Bike Replacement

WITH METAL BELT PULLEY This brushed motor with metal belt pulley, strong, durable for long time use. Useful accesoory for replacement use.

WITH METAL BELT PULLEY This brushed motor with metal belt pulley, strong, durable for long time use. Useful accesoory for replacement use.

DATA SHEET The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft diameter is 8mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model.

PREMIUM ALUMINUM MATERIAL This product is a small brush motor, made of premium aluminum material. Ensures for long service time.

8 MM SHAFT DIAMETER The electric bike brush motor shaft diameter: 8mm (single milling slot 1mm). Rated power: 120W (kW), Rated voltage: 12 (V).

SUITABLE RANGE This high speed small brush motor is suitable for electric scooter, electric bicycle, etc.
Specification
Condition: 100% Brand New
Item Type: Brushed Motor
Model: MY6812
Material: aluminum
Sprocket: 25H 9 teeth sprocke
Rated power: 120W (kW)
Rated voltage: 12 (V)
Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: <8, 5A Package List: 1 x Brushed Motor
