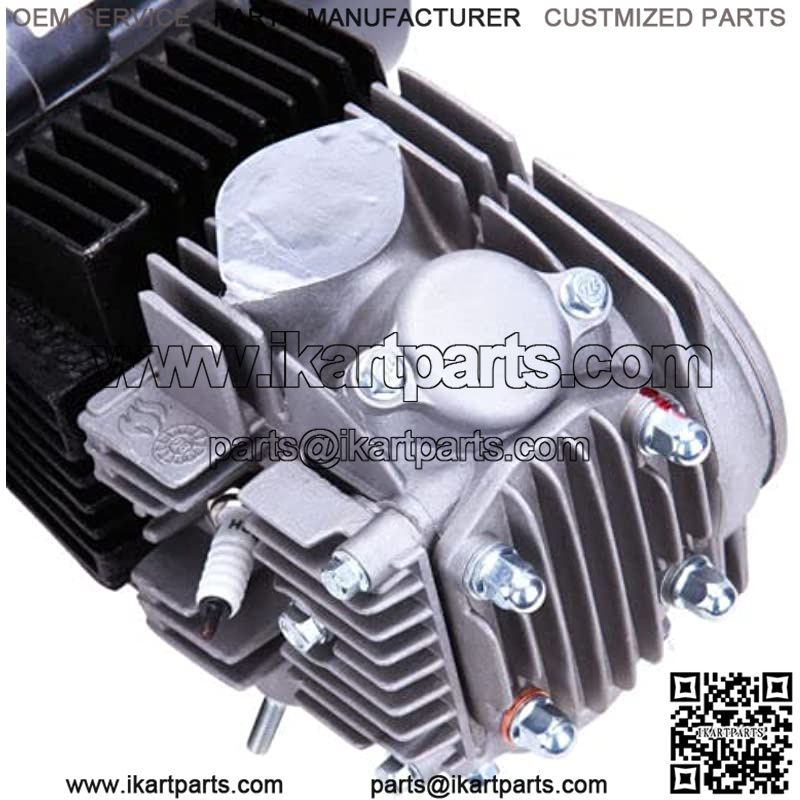

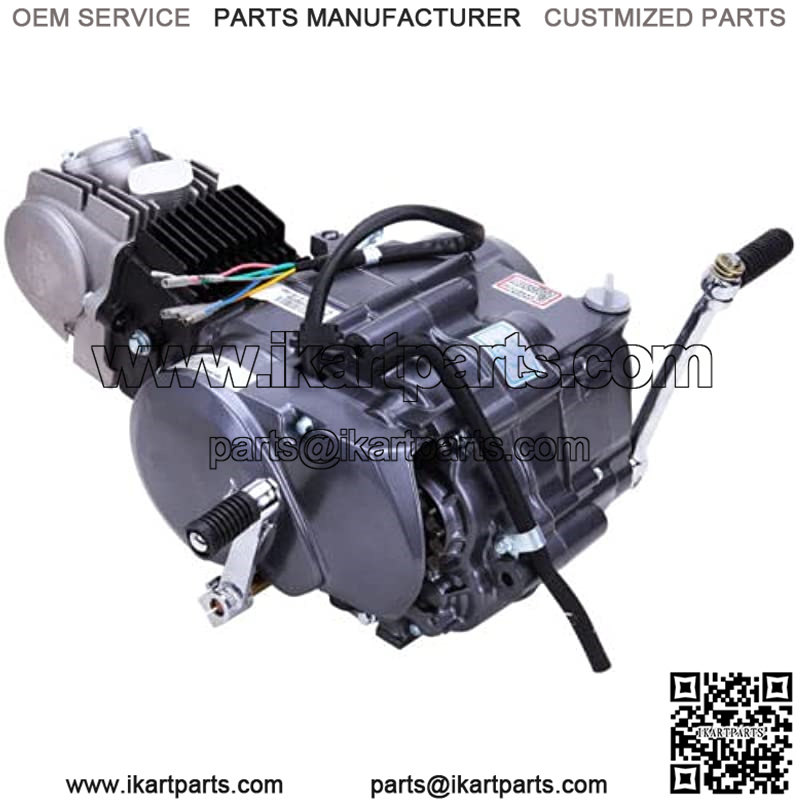

125cc 4 Stroke Engine Motor, For Honda Crf50 Crf70 Xr50 Xr70 Z50r Ct70 Mini Trail Motor Engine Carb Complete Kit 125cc Engine Small Engine Motor Motorcycle Dirt Pit Bike
SPREAD THE LOVE
Description
Model:1P52FMI-K. Idle Speed: 1500r/min??100r/min. Transmission:4-speed, Manual clutch.
Max Power: 6.5 kW/7500r/min??375r/min. Max Torque: 8.0 Nm/5000r/min??250r/min.Max Torque: 8.0 Nm/5000r/min??250r/min.
Type: single cylinder, 4-stroke with air-cooled, and clutch operated by hand.

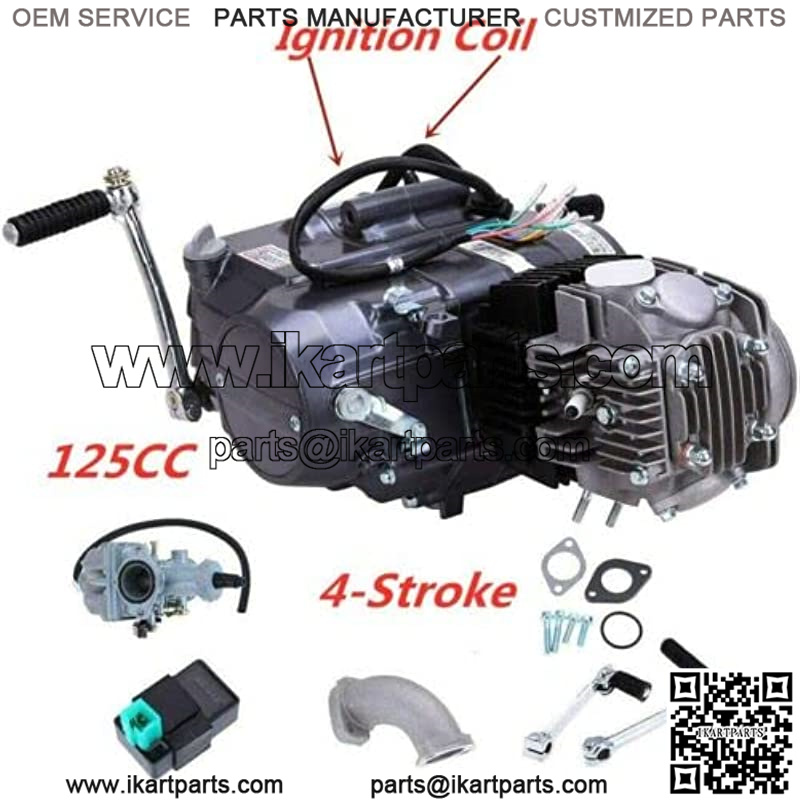

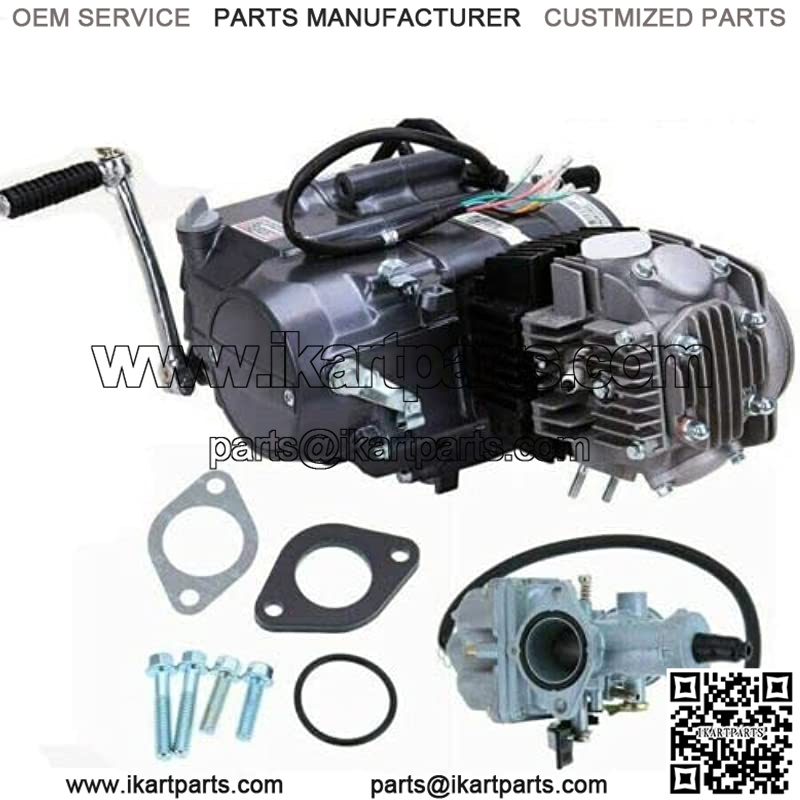

This complete engine kit comes withFM1P52I engine, carburetor, intake manifold, intake gaskets, shifter, kick starter, wiring harness, CDI, spark plug and ignition coil.
For HONDA CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail Monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Passport / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50 /
Product Description
Specifications: ?? Type: Single cylinder, 4-stroke with air-cooled, and clutch operated by hand ?? Bore??Stroke: 52.4??55.5 mm ?? Displacement: 119.7 ml ?? Compression Ratio: 9.0:1 ?? Max Power: 6.5 kW/7500r/min??375r/min ?? Rated Power: 5.6 kW/7500r/min??375r/min ?? Max Torque: 8.0 Nm/5000r/min??250r/min ?? Idle Speed: 1500r/min??100r/min ?? Min Fuel Consumption: ??367g/kw.h ?? Ignition System: CDI ?? Start Mode: Kick-starter ?? Spark Plug: A7TC ?? Clutch: Wet multi-plate ?? Transmission:4-speed, Manual clutch ?? Carburetor Type: PZ16J ?? Primary Reduction Ratio:3.722 ?? Gear Ratio:2.833/1.706/1.238/0.958 ?? Lubricant Capacity: 900 ml ?? Lubricant: SAE15W/40-SE, 4-stroke gasoline engine oil ?? Fits (For the reference): ?? For HONDA CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail Monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Passport / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50 / ?? Please note this is not a guarantee, if you are unsure, please ask your local dealer. NOTE:Installation Manual Is NOT Included Professional Installation Is Highly Recommended Package includes: 1x 125CC ENGINE 1x Kick Starter Lever 1x Gear Shift Lever 1x Carburetor 1x Intake Manifold 1x CDI 2x Intake Gaskets
