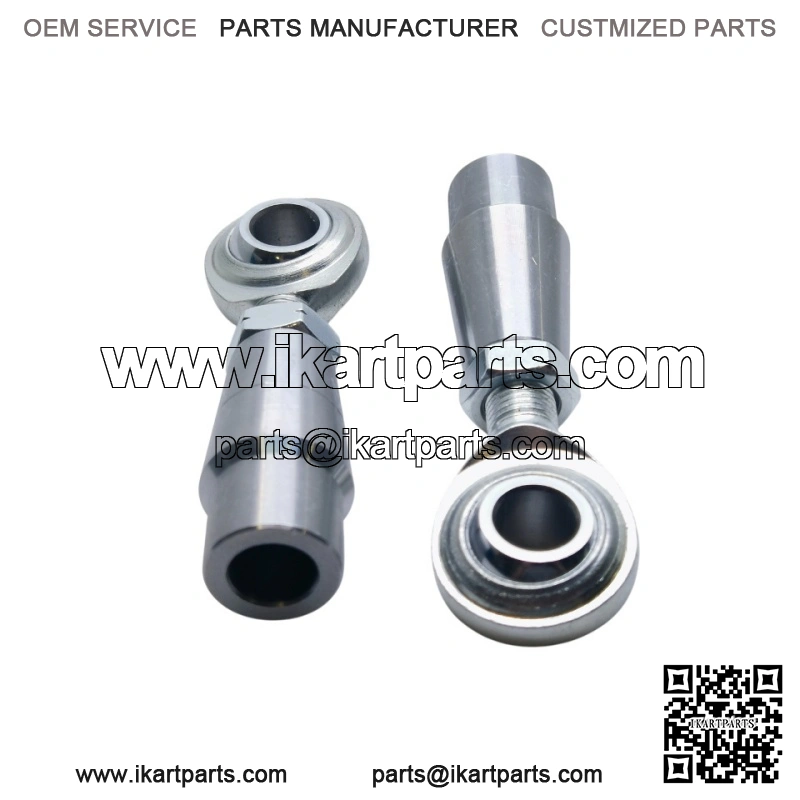

1/2 X 1/2-20 Economy Panhard Bar Kit with Bung .065, Rod End, Heim Joint LH + RH

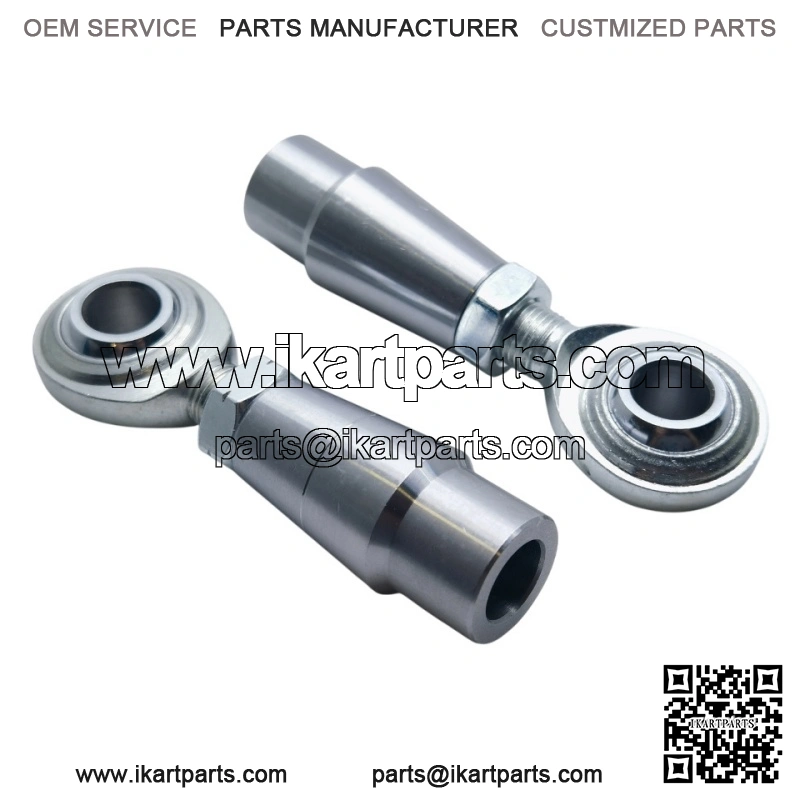

1/2 X 1/2-20 Economy Panhard Bar Kit with Bung .065, Rod End, Heim Joint LH + RH - Image 2

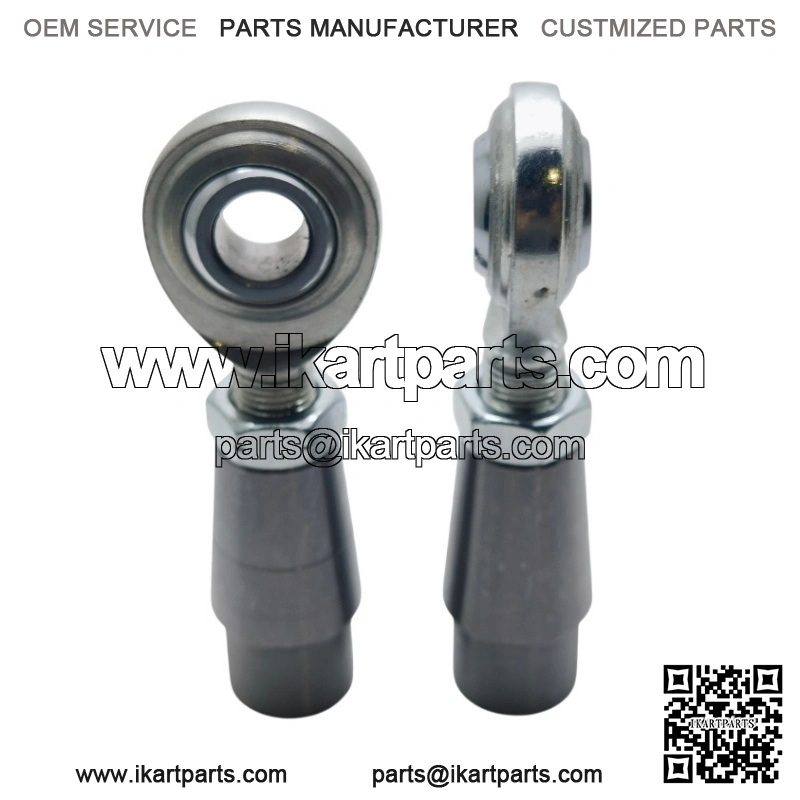

1/2 X 1/2-20 Economy Panhard Bar Kit with Bung .065, Rod End, Heim Joint LH + RH - Image 3

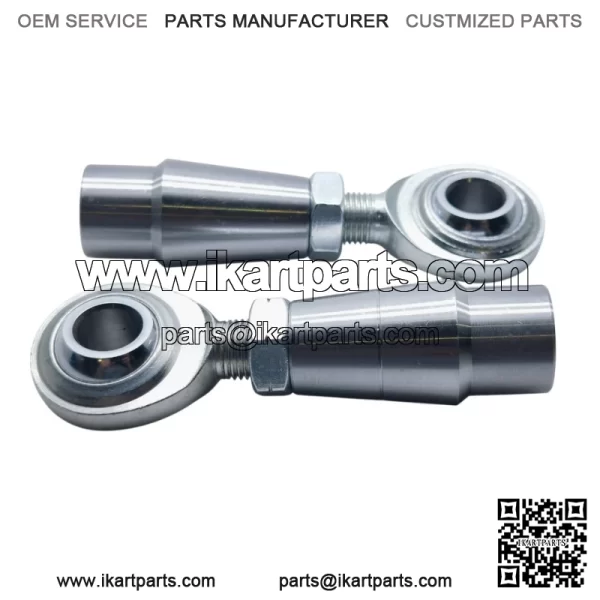

1/2 X 1/2-20 Economy Panhard Bar Kit with Bung .065, Rod End, Heim Joint LH + RH - Image 4

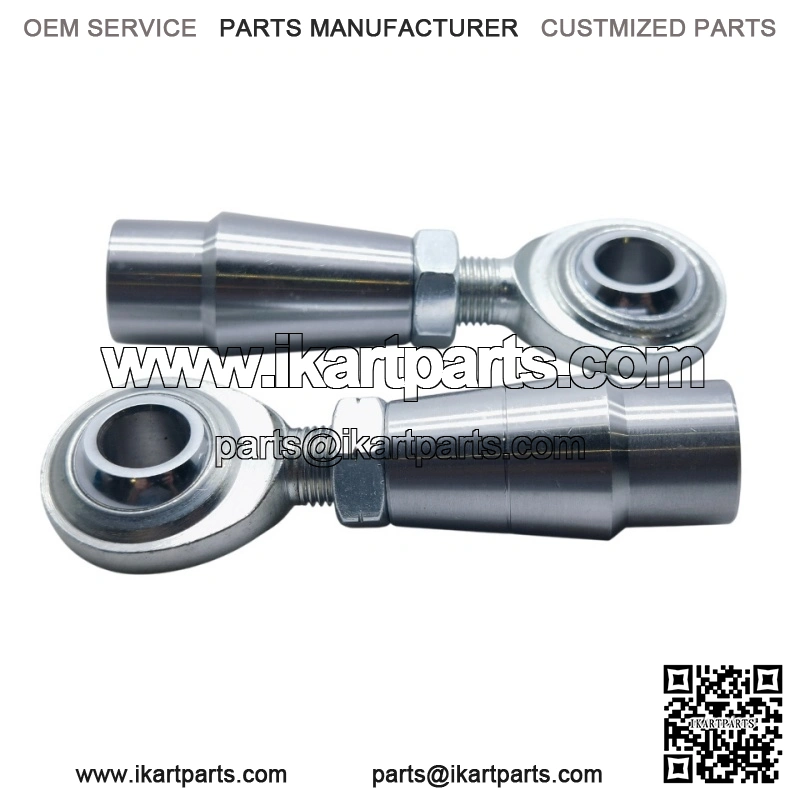

1/2 X 1/2-20 Economy Panhard Bar Kit with Bung .065, Rod End, Heim Joint LH + RH

SKU: QT.05208 '843718105038 Category: Tag:

Spread the love

1 Right Hand & 1 Left Hand
Rod End Bod
Material:C1045 Steel Heat Treated, Silver Zinc Plated
Rod End Bal
Material:52100 Bearing Steel Precision Ground Heat Treated, Hard Chrome Plated
Jam Nut Specs: Thread: 1/2-20, Width: 0.302-0.323, Height: 0.736-0.750
Bar Kit Specifications
Rod End
Thread Size: 1/2″-20
Ball Bore: 0.500″
Ball Width: 0.625″
Centerlin
Length:2.438″
Threa
Length:1.500″
Load Capacity: 12,224 lbs
Bun
Material:1045 Steel
Thread Size: 1/2″-20
Fits Tube Size: 1″ OD. x .065″ Wall x 0.85″ ID
Jam Nut
Thread Size: 1/2″-20
Width: 3/4″
Height: 5/16″
